How to Improve the Performance of Large AutoCAD Civil 3D Surfaces

CADD MicrosystemsSeptember 3rd, 2013

From grading to storm and sanitary sewer design, AutoCAD Civil 3D Surfaces serve as a foundation for nearly all aspects of a typical civil engineering project. Given the far reaching impact of AutoCAD Civil 3D Surfaces, it's important to keep your data as lean as possible as not to negatively effect your projects performance. There are several ways to accomplish this including the best practice of limiting the total number of surfaces contained within any one drawing.

Although these best practices will go a long way to maintain the performance of your AutoCAD Civil 3D project, it's still not enough for some larger projects. If you have a very detailed surface, or one that covers a large area, that surface will likely impact the performance of any drawing it is referenced into. To better manage situations like this one, AutoCAD Civil 3D has a Level of Detail feature that you can choose to enable or disable as needed.

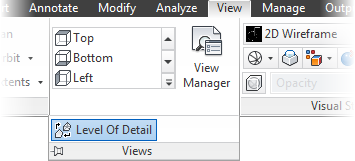

You can enable or disable the Level of Detail feature from the expanded Views panel of the View tab within the AutoCAD Civil 3D Ribbon. Expanding the Views panel will display the Level of Detail tool. Like other toggles inside AutoCAD Civil 3D, the Level of Detail feature is enabled whenever this button has a blue background, and disabled whenever it has a gray background.

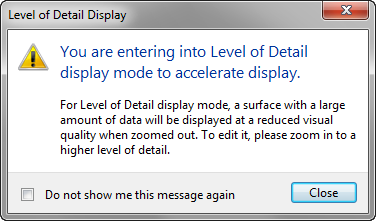

The above warning will display when you enable the Level of Detail feature. This warning is simply telling you AutoCAD Civil 3D will selectively display a subset of the data composing your surface based on your current zoom level. For instance, if you were to perform a Zoom Extents to display your entire project, AutoCAD Civil 3D would display less data than when you were zoomed into a specific storm inlet.

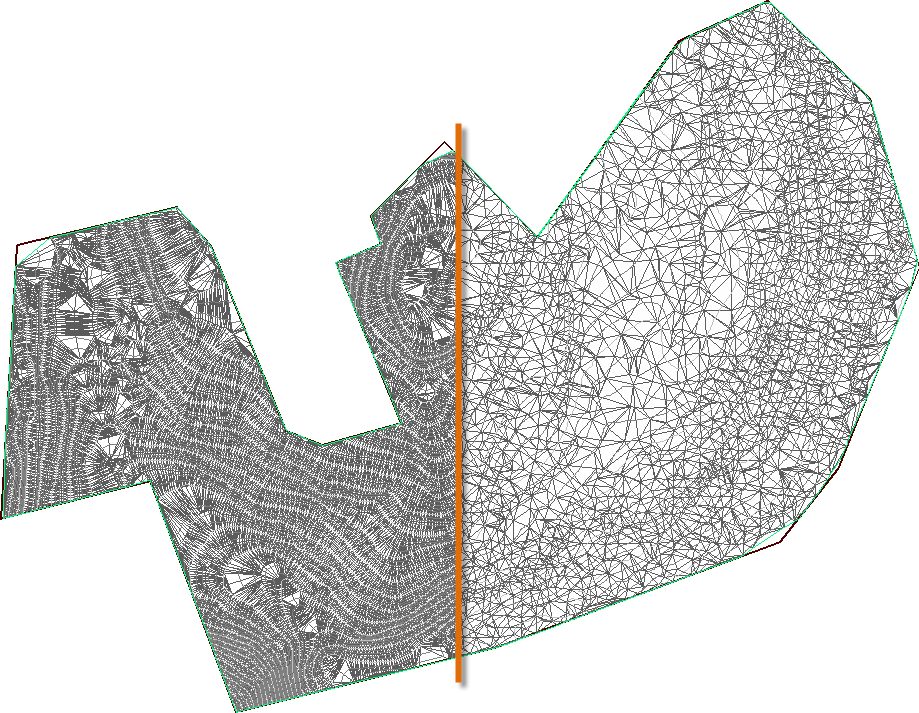

To demonstrate this, the above image shows an existing ground surface with the Level of Detail feature disabled on the left, and enabled on the right. Although the Level of Detail feature will selectively display a subset of the surface data contained within a drawing, it's important to note the original surface definition remains intact.

Since the Level of Detail feature will impact the way surfaces display, we do not recommend using it when performing tasks such as grading when its imperative to know exactly how a surface is triangulating. On the other hand, the Level of Detail feature is an incredible way to boost AutoCAD Civil 3D performance for most other surface-related tasks. Since the original definition remains intact, the Level of Detail feature is safe to use when performing tasks such as setting the Rim elevation for pipe structures.
